Help > ArtisanACAD_25.1.48.0 Planting > Planting Labels > Edit Labels >

Artisan Landscape for AutoCAD & BricsCAD

Edit Planting Single Species

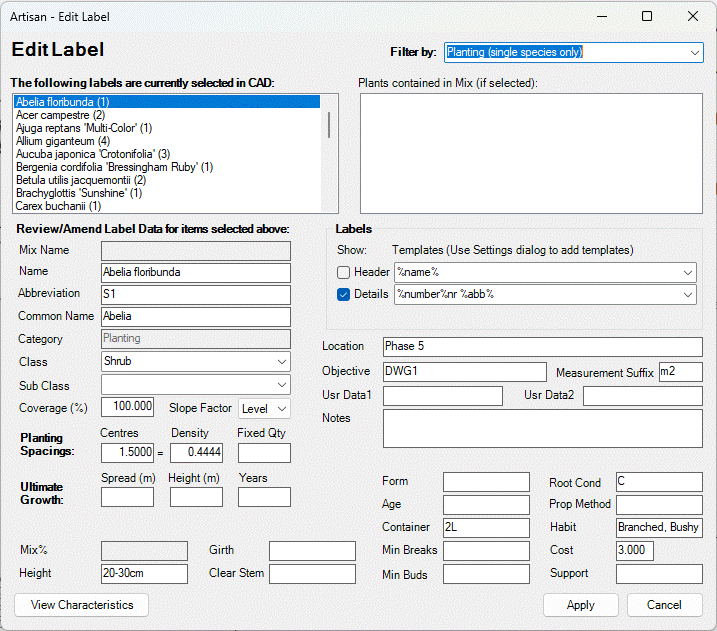

Select Planting (single species only) from the Filter by menu...

The selected labels list displays only Planting Single Species labels...

Change details as required for associated specification information or user data and notes. Note that users are able to select multiple records for editing.

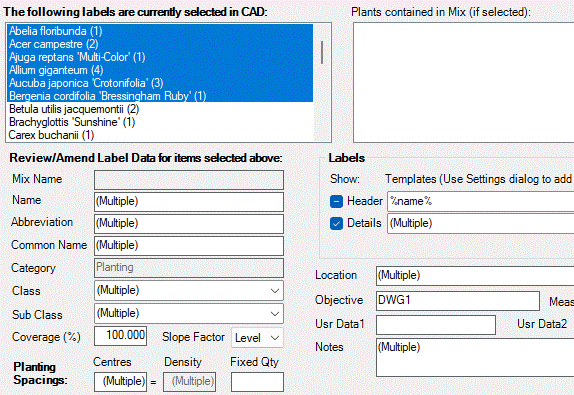

If different values have been assigned to fields when more than one label is selected, the entry "(Multiple)" is displayed accordingly.

Note that applying changes to fields when multiple selections have been made, will result in ALL SELECTED labels being edited accordingly.

Coverage Percentage

Users are able to alter the percentage coverage for linear or area planting by entering a value in the Coverage % field. Note this is not available for individual plants that are part of a Planting Mix.

Slope Factor

Users are able to change the slope factor for linear and area planting (single species or mixes) by selecting a value from the Level pop-down menu.

Pick Apply to commit changes to the selected label(s).
