Command

Spot Dim Options is available from the Place Spot Dim pop-down menu.

Purpose

To define settings for Spot Dims (Northings and Eastings) for planting components placed in a model.

Usage

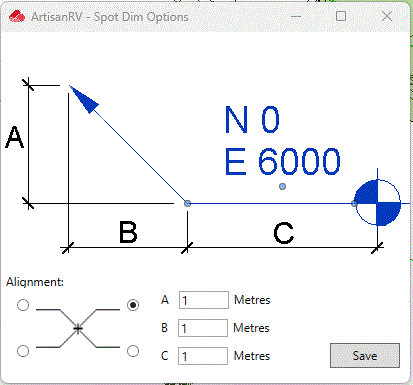

Select Spot Dim Options to display the Spot Dim Options dialog.

Define the leader alignment sizes required (A,B,C) by entering values in the associated edit boxes.

Pick Save to commit changes.
