Command

The Fill Floors Voids tool is available from the Floor Tools drop-down menu on the Other Utilities panel.

Purpose

Usage

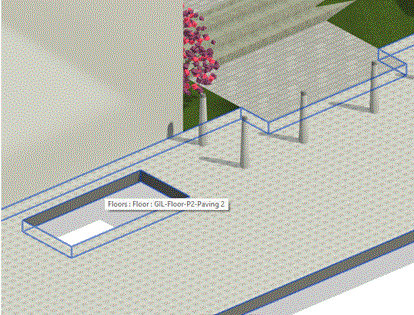

Pick Fill Floor Voids from the Floor Tools drop-down menu and select Floor/s with voids (holes).

Pick Finish to confirm selection set to display the Define New Floor dialog.

.

• Select a Floor Type
• Select a Floor Level for the new floor to be hosted to.
• Define an offset for the finishde floor height (note: a negative number will recess the new floor).
• Pick Create Floors.

A message is displayed to confirm completion of the filled voids.

If a negative Floor Height Offset has been defined, the new floor surface will be recessed from the selected floor.

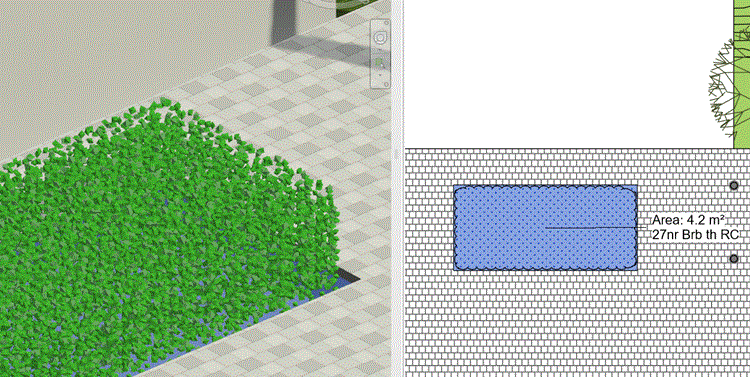

The new 'floor' can then be planted as required.

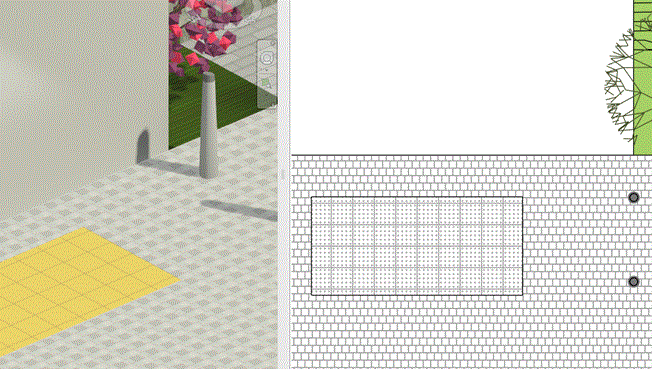

The new floor could be placed flush over underground services with a different paving material displayed as the finish surface.
